YC18 OD18mm ceramic pressure sensor

FOB Reference Price:Get Latest Price
US $2-5 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Model Number:
YC18
Product name:
YC18 OD18mm ceramic pressure sensor
Pressure range:
2 Bar.....600 Bar Optional
Ceramic material:
96% alumina (Al2O3)
Dimension(mm):
OD18 * (3.5-6.35mm) (height)
Supply voltage:
30Vdc Max
Bridge impedance:
11KΩ±30%
Full range output:
>2mV/V,typical value 3mV/V
Working temperature:
-40~135℃
Temperature drift (Zero &sensitivity):
≤±0.03%FS/℃
Zero offset:
≤±0.2mV/V
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month YC18 OD18mm ceramic pressure sensor
Packaging & Delivery
Packaging Details
YC18 OD18mm ceramic pressure sensor in JSET standard cartons.
Port
shanghai
Lead Time :
Shipped in 30 days after payment

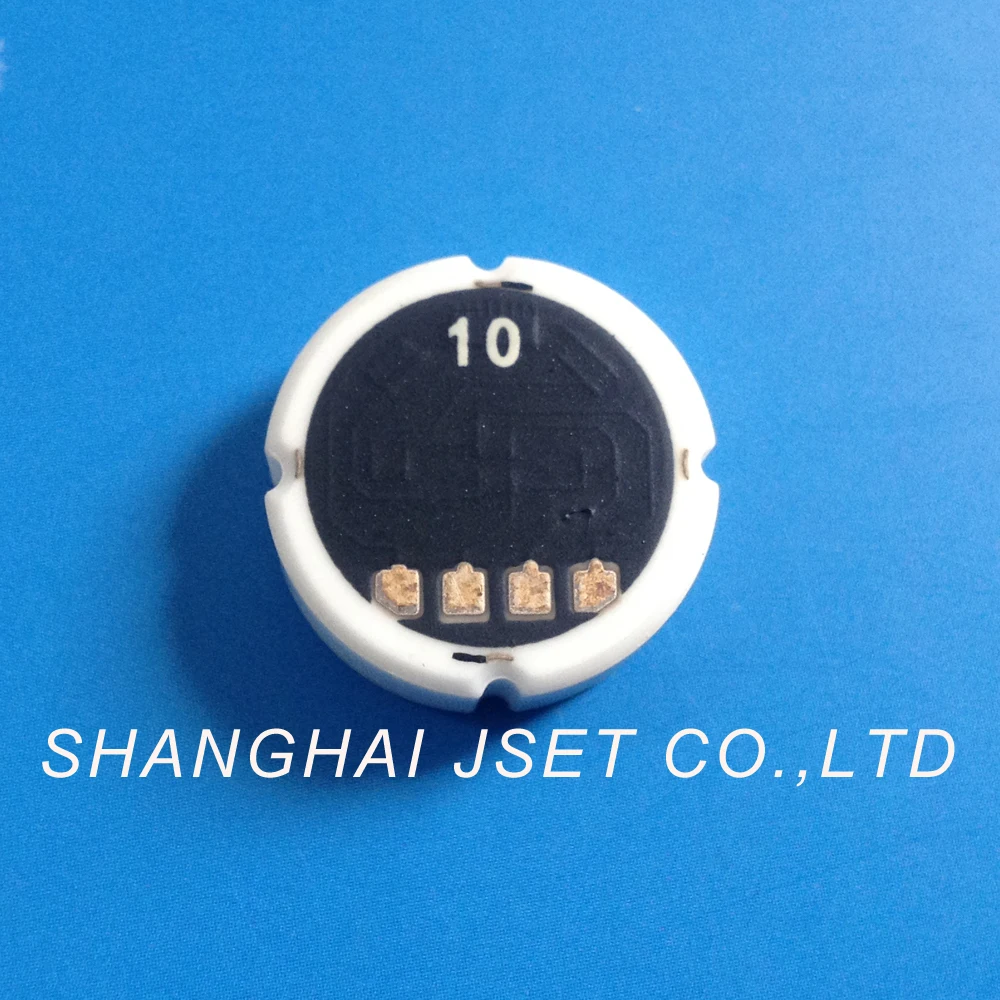

YC18 OD18mm ceramic pressure sensor

600 bar





Product Description


The advantages for ceramic pressure sensors are long service life,high flexibility,corrosion resistance,wear resistance,wear resistance,resistance to impact and vibration.





Mechanical specifications

Item No.

Pressure range(bar)

Breakdown pressure(bar)

YC18-10

0....10

30

YC18-15

0....15

45

YC18-20

0....20

60

YC18-25

0....25

75

YC18-30

0....30

90

YC18-40

0....40

100

YC18-50

0....50

125

YC18-70

0....70

175

YC18-100

0....100

250

YC18-200

0....200

500

YC18-400

0....400

700

YC18-600

0....600

1050



Technical Parameters

Product name

Piezoresistive ceramic pressure sensor

Ceramic material

96% alumina (Al2O3)

Item No.

YC18

Pressure range

5-600 bar

Dimension(mm)

φ18 × (3.5 ~ 6.35mm) (diameter × height)

Supply voltage

30Vdc Max

Bridge impedance

11KΩ±30%

Full range output

>2mV/V,typical value 3mV/V

Working temperature

-40~135℃

Temperature drift (Zero &sensitivity)

≤±0.03%FS/℃

Comprehensive precision

≤±0.3%FS

repeatability

≤±0.1%FS

Zero offset

≤±0.2mV/V

Breakdown pressure

≥1.75~3 times pressure range



Technology: ceramic thick film technology of large-scale integrated piezoresistive OEM applications:

Excellent long-term stability

Effective temperature compensation

Operating temperature range - 40 ~ + 135 ° C



High reliability YC18 Warming ceramic piezoresistive pressure sensor adopts the international advanced

manufacturing technology, access to international invention patent design,advanced product testing sound

system, so YC18 Warming ceramic piezoresistive pressure sensor has superior performance, exceptional

quality and wide range of applications.

YC18''monolit sensor''® is an ideal pressure sensing element, which can be used to mount the metal shell or

directly integrated with the integrated electronic circuit equipment.Full temperature compensated to ensure

that within the operating temperature range,the temperature does not exceed the maximum drift of

± 0.04% FS / ° C.This structure allows the sensor in harsh conditions remained very stable.Internal sensing

elements are fully protected against humidity, moisture and chemical corrosion. Fear condensation, provide

typical output 3mV / V, allows simple signal conditioning.Can be mass-produced, high-performance,

low-cost OEM applications.The interior is completely protected from humidity and condensation effects.Excellent

corrosion resistance, can be in direct contact with the corrosive gas liquids.Compact, easy package.





Electrical specifications:

Maximum excitation: voltage 30 Vdc

Bridge impedance: 11 KW ± 30%

Zero offset: ≤ ± 0.2 mV / V

Insulation Resistance:≥ 2 KV

Zero long-term stability @ 20 ° C: ± 0.2% FSO, typ. (No time cumulative)



Environmental Specifications:

Direct contact with the liquid material: 96% aluminum oxide

Operating temperature: - 40 up to + 135 ° C

Storage Temperature: - 50 up to + 150 ° C

Temperature drift (Zero & sensitivity): ≤ ± 0.04% FS / ° C

Relative Humidity: 0 - 100%

Sensor Weight:  ≤7 g

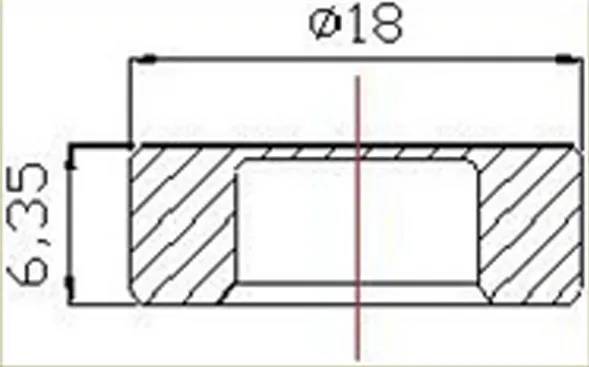

Dimensions and electrical wiring diagram:



Dimensions (mm): height = (3.5 ~ 6.35) ± 0.01






Electrical connection:


1. + Excitation voltage

2. – Output

3. - Excitation voltage

4. + Output
