Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Type: Ceramic Parts
  • Application: Industrial Ceramic
  • Material: Alumina Ceramic
  • Model Number: JS202
  • Brand Name: jset
  • Product name: Customized large size ceramic strips
  • Density: 3.91 g/cm3
  • Bending Strength: 370 MPa
  • Compressive Strength: 2500 MPa
  • Elastic Modulus: 390 GPa
  • Vickers Hardness: 1800 HV0.5
  • Thermal Conductivity: 30 W/mK
  • Thermal Shock Resistance (Put in Water): 280 T°C
  • Max Working Temperature: 1700 °C
  • Dielectric Strength: 10 r

Packaging & Delivery

Packaging Details standard packing

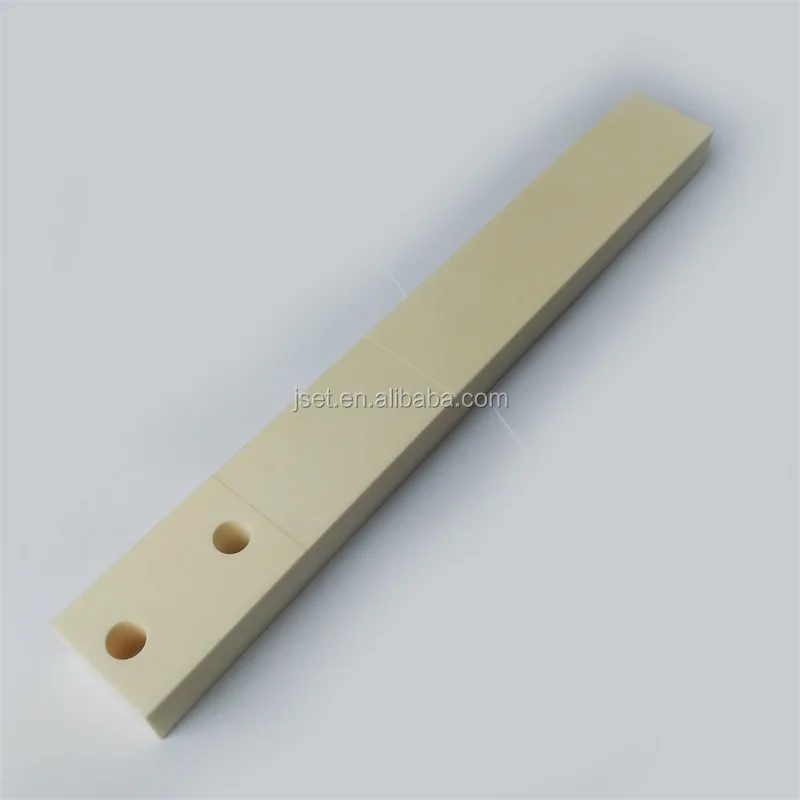

Customized large size ceramic strips
Delivery Time Shipped in 20 days after payment

Customized large size ceramic strips


Alumina(95%-99.9%) is widely applied in electronic, semiconductor, mechanical,aerospace,   petrochemical, medical equipment and other fields for its high mechanical strength, hardness, chemical resistance and other characteristics. As structural ceramic comp-onents, alumina ceramic has the following characteristics:


High strength

Excellent insulation properties

High hardness and wear resistance

Good corrosion resistance

Low dielectric constant and dielectric loss

Excellent thermal conductivity and shock resistance

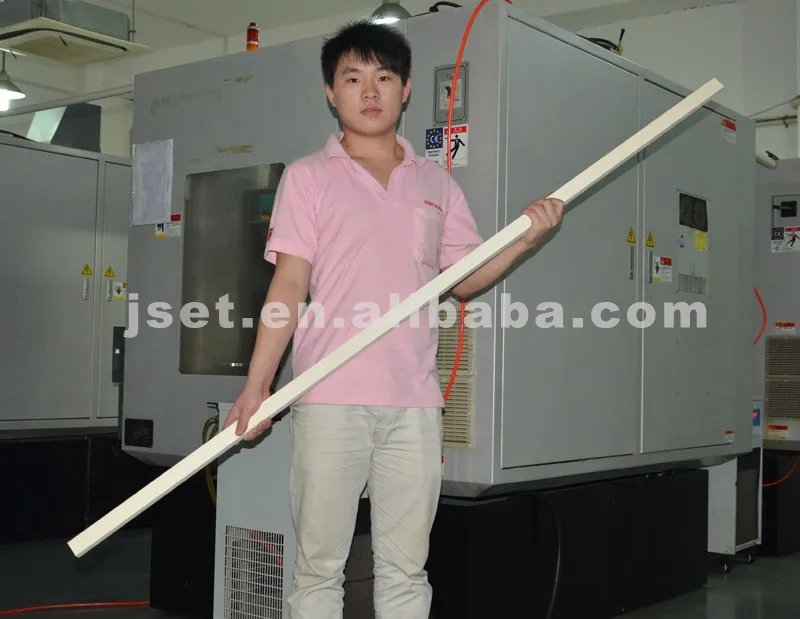

 MAX Size(mm)  300*1800mm



Our Services

JSET provide the following materials for machinable ceramics:


Alumina               Al2O3


Zirconia               ZrO2


Silicon nitride       Si3N4


Silicon carbide     SiC


Aluminum nitride  AlN





In case of any this kind of products,welcome to send me your enquiry.We will get back to you in 24 hours.




Reasons to choose ceramic for your parts:


Ceramic parts are used for applications that require wear or corrosion resistance, high temperature capability, or ceramic insulators for electrical resistance.




1. High wear resistance


2. High corrosion resistance


3. Electrical resistance


4. Low thermal expansion


5. High tensile strength


6. Dielectric strength




Other services:


Supply standard ceramic bolts/screws and nuts



Supply silicon nitride welding nozzle for auto welding


Supply silicon nitride winding drum


Greener Manufacturing


Custom/Standard Shapes


Ceramic precision manufacturing


Fine machining


Ceramic machinable parts








Company Information

SHANGHAI JSET CO., LIMITED  is a trading and manufacturing company,we supply industrial and technical ceramics products.We cooperate with about 100 ceramic factories/plants from Japan,South Korea,Taiwan,Shanghai,Yixing,Shenzhen,Hunan,Shangdong,etc. JSET has complete in-house capabilities to assist with design,engineering,tooling and manufacturing of technical ceramics to customer requirements.Ceramic parts and components from alumina,aluminum nitride,zirconia,zirconia toghened alumina,mullite,silicon nitride,silicon carbide,cordierite,steatite can be manufactured by us. Our availabilities regarding dry pressing,cold isostatic pressing,low pressure injection molding,gelcasting,extrusion,green machining. Ceramic parts and components are use for applications that require wear or corrosion resistance,high temperature capability,or ceramic insulators for electrical resistance to replace plastic and metal materials.




1. Are you a trading company?

A: Yes,JSET is a trading company,but we have 3 ceramic product engineers with 8 years experience in ceramic industry.We do business with many ceramic factories/plants,we can give you best price and quality for the same products.And we can reduce delivery time through effective communication.


2.What is necessary for a quote?

A: Your drawing if possible,quantity,tolerance requirements.etc.


3. What is the delivery time for a ceramic product?

A:Usually it is 20-30 days.


4. What is your Payment terms?

A: By T/T.


5.And shipment?

A: For small quantity it is shipped by International express.For big quantity will be shipped by sea.


6.In case of any other questions please just contact me(Ms.Alice) freely. Thank you.
