ceramic liquid pressure sensor
Our standard carton.
1 - 10000
To be negotiated
YC18 alumina ceramic liquid pressure sensor
The advantages for ceramic pressure sensors are long service life,high flexibility,corrosion resistance,wear resistance,wear resistance,resistance to impact and vibration.
Piezoresistive ceramic pressure sensor
96% alumina (Al2O3)
φ18 × (3.5 ~ 6.35mm) (diameter × height)
Full range output
>2mV/V,typical value 3mV/V
Temperature drift (Zero &sensitivity)
≥1.75~3 times pressure range
Technology:ceramic thick film technology of large-scale integrated piezoresistive OEM applications:
Excellent long-term stability
Effective temperature compensation
Operating temperature range - 40 ~ + 135 ° C
High reliability YC18 Warming ceramic piezoresistive pressure sensor adopts the international advanced
manufacturing technology, access to international invention patent design,advanced product testing sound
system, so YC18 Warming ceramic piezoresistive pressure sensor has superior performance, exceptional
quality and wide range of applications.
YC18''monolit sensor''® is an ideal pressure sensing element, which can be used to mount the metal shell or
directly integrated with the integrated electronic circuit equipment.Full temperature compensated to ensure
that within the operating temperature range,the temperature does not exceed the maximum drift of
± 0.04% FS / ° C.This structure allows the sensor in harsh conditions remained very stable.Internal sensing
elements are fully protected against humidity, moisture and chemical corrosion. Fear condensation, provide
typical output 3mV / V, allows simple signal conditioning.Can be mass-produced, high-performance,
low-cost OEM applications.The interior is completely protected from humidity and condensation effects.Excellent
corrosion resistance, can be in direct contact with the corrosive gas liquids.Compact, easy package.
Maximum excitation: voltage 30 Vdc
Bridge impedance: 11 KW ± 30%
Zero offset: ≤ ± 0.2 mV / V
Insulation Resistance:≥ 2 KV
Zero long-term stability @ 20 ° C: ± 0.2% FSO, typ. (No time cumulative)
Direct contact with the liquid material: 96% aluminum oxide
Operating temperature: - 40 up to + 135 ° C
Storage Temperature: - 50 up to + 150 ° C
Temperature drift (Zero & sensitivity): ≤ ± 0.04% FS / ° C
Relative Humidity: 0 - 100%
Sensor Weight: ≤7 g

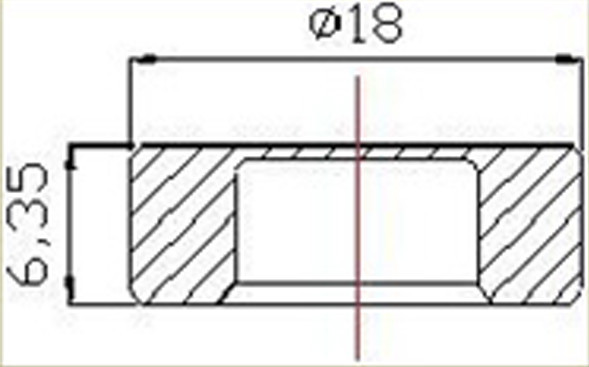

Dimensions and electrical wiring diagram:
Dimensions (mm): height = (3.5 ~ 6.35) ± 0.01
1. + Excitation voltage
2. – Output
3. - Excitation voltage
4. + Output
