Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: JSET
  • Model Number: ceramic pin
  • Type: Insulating Ceramics
  • Material: Zirconia
  • color: blue
  • application: auto welding
  • Density: 6.02 g/cm3
  • Bending Strength: 1200 MPa
  • Compressive Strength: 3000 MPa
  • Elastic Modulus: 210 GPa
  • Fracture Toughness: 13 MPam1/2
  • Vickers Hardness: 1300 HV0.5
  • Thermal Conductivity: 2.2 W/mK
  • Max Working Temperature: 1000 °C

Packaging & Delivery

Packaging Details Our standard cartons.
Delivery Time Shipped in 20 days after payment
Product Description

1. Application: for welding use

2. Size: standard size or customized size OK

3. Standard: DIN ISO GB JIS BA ANSI

4. Certification: ISO9001, SGS, CTI, ROHS

5. Advantages:

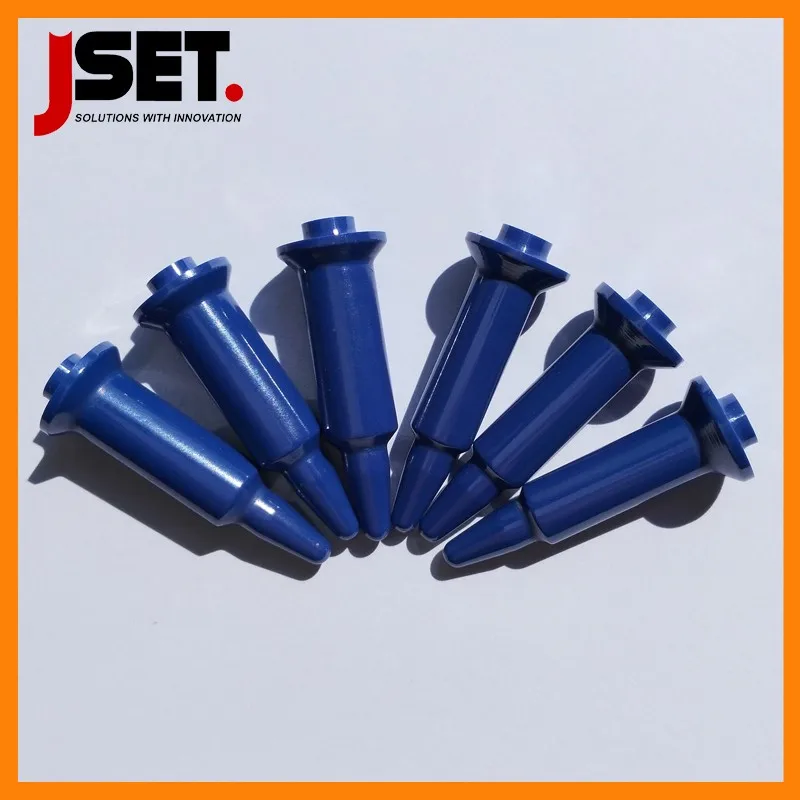

Blue zirconia ceramic pin can be used in auto welding industy.
With excellent mechanical strength and toughness, it's the real "ceramic steel". High hardness,excellent thermal shock resistance and high-temperature properties make blue zirconia positioning pins become a very important material for resistance welding positioning, centering and adjust, such as silicon nitride.
The material of welding technology is usually used in extreme environment, should be chosen according to different application,  to meet its high wear resistance, high durability, high efficient requirements.
Product Name
ZrO2 high strength zirconia ceramic weld pins
Material
ZrO2 Zirconia ceramic
Color
white blue
Standard
DIN GB ISO JIS BA ANSI
Used
for welding use
Product Description
DATASHEET of ZIRCONIA
Main Characteristics
High Mechanical Strength, Good Wear and Heat Resistance.
Main Applications
Wear and Heat Resistance Parts
Zirconia (ZrO2)
Zirconid-Toughened Alumina
MgO Partially Stabilized Zirconia
3%mol Y2O3 Stabilized Zirconia
Characteristics
Item
ZTA
Mg-PSZ
3Y-TZP
Unit
Mechanical Characteristics
Colour
White
Ivory
White/Ivory

Density
4.1
5.72
6.02
g/cm3
Bending Strength
550
500
1200
MPa
Compressive Strength
2900
2500
3000
MPa
Elastic Modulus
360
250
210
GPa
Fracture Toughness
5~6
8
13
MPam1/2
Vickers Hardness
1600
1100
1300
HV0.5
Thermal Characteristics
Coefficient of Line Thermal Expansion
8.3
10.2
10.3
10-6K-1
Thermal Conductivity
27
3
2.2
W/mK
Thermal Shock Resistance
(Put in Water)
300
450
300
∆T°C
Max Working Temperature
1500
2100
1000
°C
Electrical Characteristics
Volume Resistance at 20°C
>1014
>1013
>1013
Ωcm
Dielectric Strength
9×106
13×105
11×106
V/m
Dielectric Constant
10.6
28
33
εr
One MHZ Dielectric
Loss Angle at 20°C
0.0005
0.0017
0.0016
tanδ

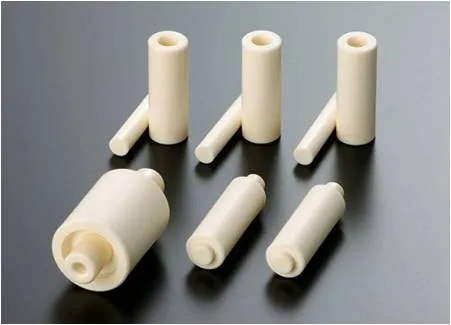

Products Show
Products Show
Our Service

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Products

High quality

Packing & Delivery

Packing Details  : Packing, ceramic parts customized, 50pcs/carton or as requested.

Delivery Details : about 30 days after order of ceramic parts / ceramic pressure sensor / tube / rob / disk / sheets / insulator / connector / bolt / nut / washer / crucible /  component, etc.

1. Special logistics packaging
2. Shock bubble film
3. Suitable carton size
FAQ

Q: Are you trading company or manufacturer ?

A: Yes, JSET is a trading company, but we have 3 ceramic product engineers with 8 years experience in ceramic industry. We do business with many ceramic factories/plants, we can give you best price and quality for the same products. And we can reduce delivery time through effective communication.

Q: What is necessary for a quote?
A: Your drawing if possible, quantity, tolerance requirements, etc.


Q: And shipment?
A: For small quantity it is shipped by International express.For big quantity will be shipped by sea.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: 100% T/T in advance.
