2-600bar Alumina ceramic pressure chip

FOB Reference Price:Get Latest Price
US $2-5 / Pieces | 100 Piece/Pieces 2-600bar Alumina ceramic pressure chip (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
JSET
Model Number:
pressure sensor
Product name:
2-600bar Alumina ceramic pressure chip
Ceramic material:
96% alumina (Al2O3)
Pressure range:
2-600 bar
Dimension(mm):
OD18 * (3.5-6.35mm) (height)
Supply voltage:
30Vdc Max
Bridge impedance:
11KΩ±30%
Full range output:
>2mV/V,typical value 3mV/V
Working temperature:
-40~135℃
Temperature drift (Zero &sensitivity):
≤±0.03%FS/℃
Zero offset:
≤±0.2mV/V
SupplyAbility
SupplyAbility:
30000 Piece/Pieces per Month 2-600bar Alumina ceramic pressure chip
Packaging & Delivery
Packaging Details
2-600bar Alumina ceramic pressure chip
Our standard carton.
Port
SHANGHAI
Lead Time :
within 15 days
Product Description

2-600bar Alumina ceramic pressure chip

Reasons to choose ceramic for your parts:
1. Long service life
2. High flexibility corrosion resistance
3. High wear resistance
4. Good resistance to impact and vibration

Environmental Specifications:
Direct contact with the liquid material: 96% aluminum oxide
Operating temperature: - 40 up to + 135 ° C
Storage Temperature: - 50 up to + 150 ° C
Temperature drift (Zero & sensitivity): ≤ ± 0.04% FS / ° C
Relative Humidity: 0 - 100%
Sensor Weight: ≤7 g

Mechanical specifications
Item No.
Pressure range(bar)
Breakdown pressure(bar)
Diameter of Inner Hole
YC18-2
0....2
6
φ9.7mm
YC18-5
0....5
15
φ9.7mm
YC18-10
0....10
30
φ9.7mm
YC18-15
0....15
45
φ5mm
YC18-20
0....20
60
φ5mm
YC18-25
0....25
75
φ5mm
YC18-30
0....30
90
φ5mm
YC18-40
0....40
100
φ5mm
YC18-50
0....50
125
φ5mm
YC18-70
0....70
175
φ5mm
YC18-100
0....100
250
φ5mm
YC18-200
0....200
500
φ5mm
YC18-400
0....400
700
φ5mm
YC18-600
0....600
1050
φ5mm
Product Description
Technical Parameters of YC18 Pressure sensor
Product name
Piezoresistive ceramic pressure sensor
Ceramic material
96% alumina (Al2O3)
Item No.
YC18
Pressure range
2-600 bar
Dimension(mm)
φ18 × (3.5 ~ 6.35mm) (diameter × height)
Supply voltage
30Vdc Max
Bridge impedance
11KΩ±30%
Full range output
>2mV/V,typical value 3mV/V
Working temperature
-40~135℃
Temperature drift (Zero &sensitivity)
≤±0.03%FS/℃
Comprehensive precision
≤±0.3%FS
repeatability
≤±0.1%FS
Zero offset
≤±0.2mV/V
Breakdown pressure
≥1.75~3 times pressure range

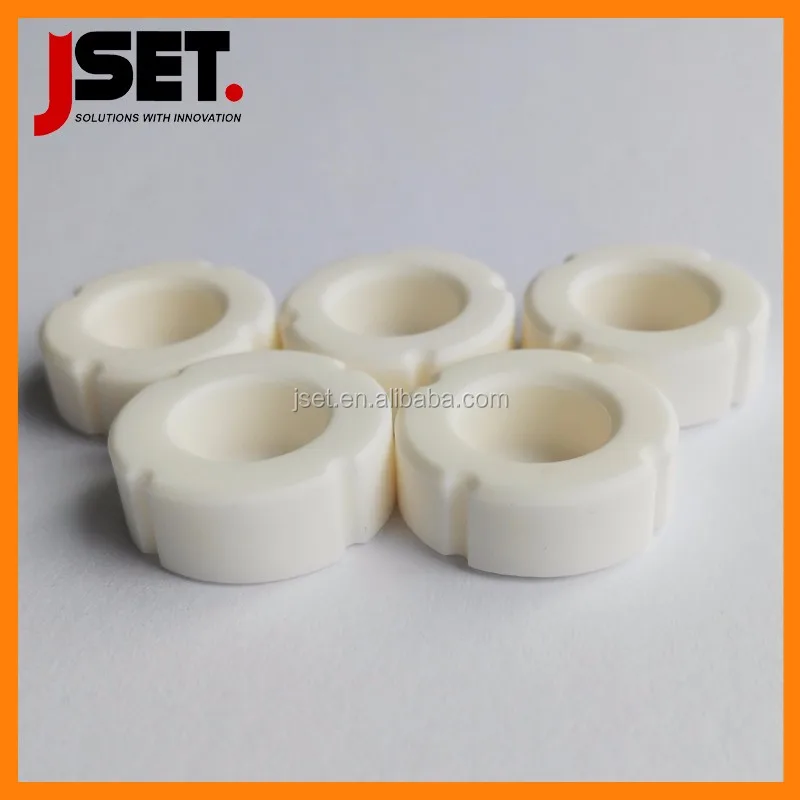

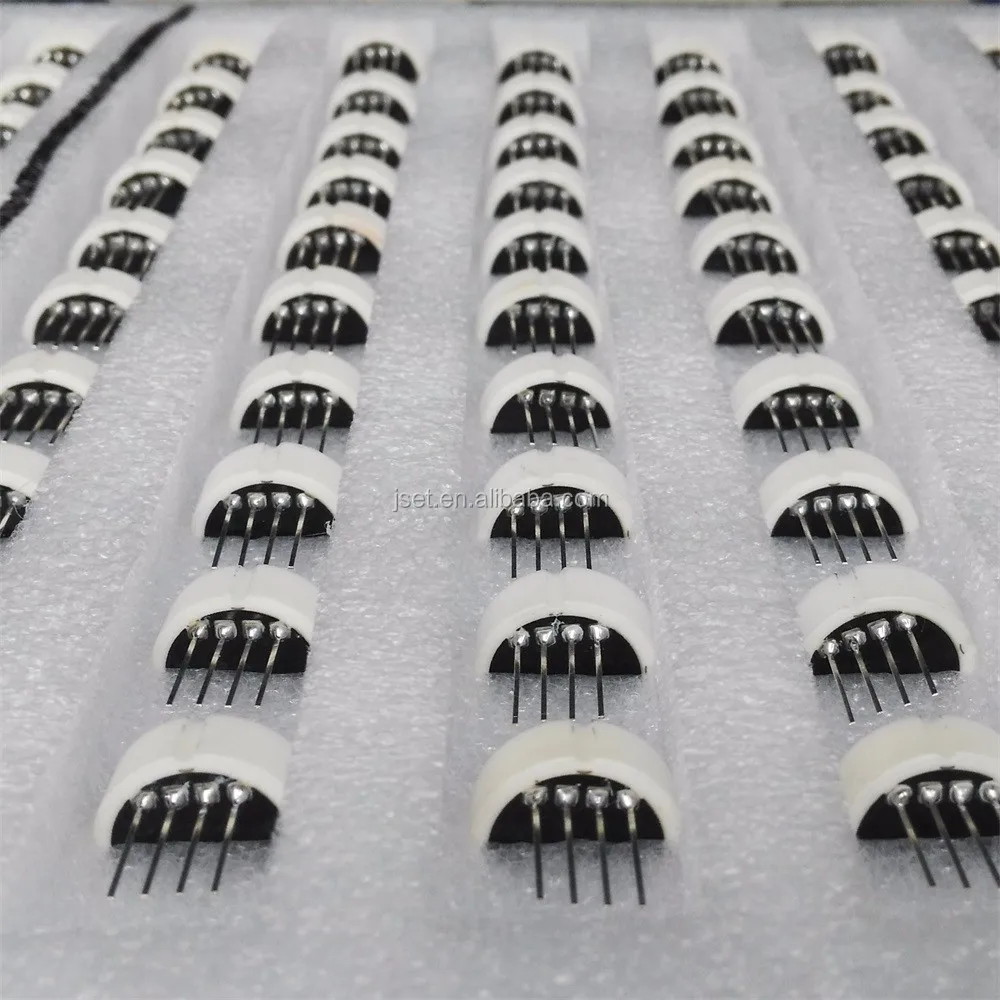

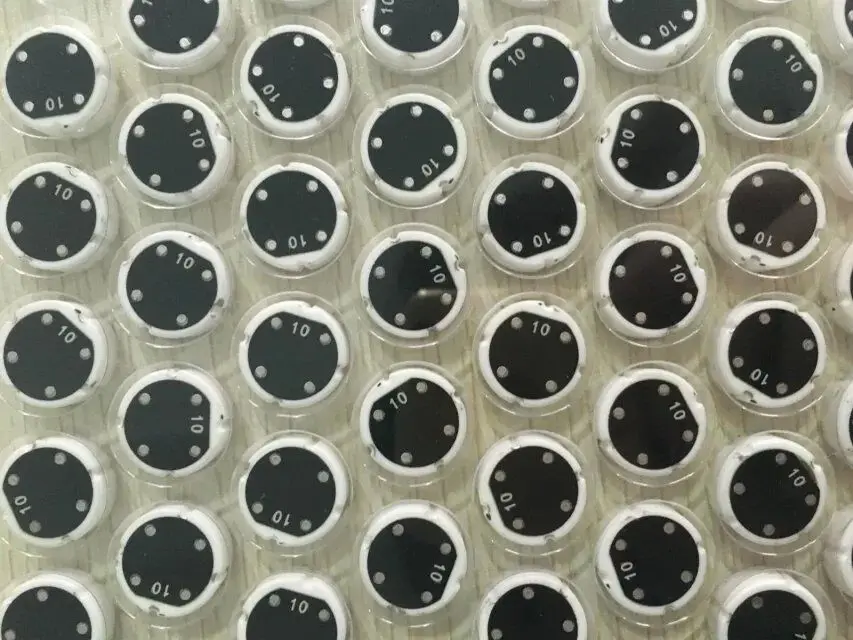

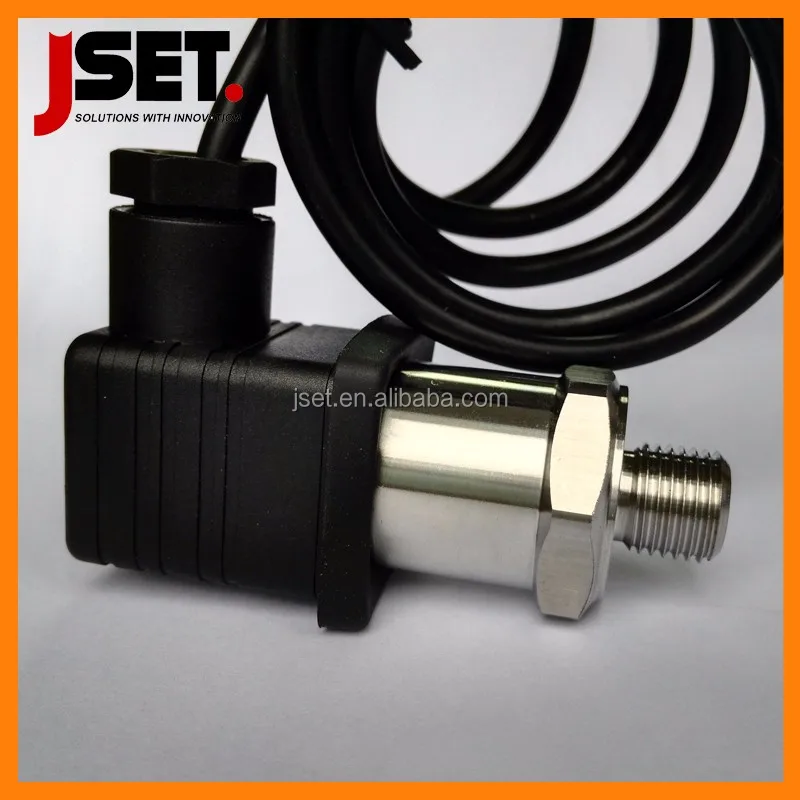

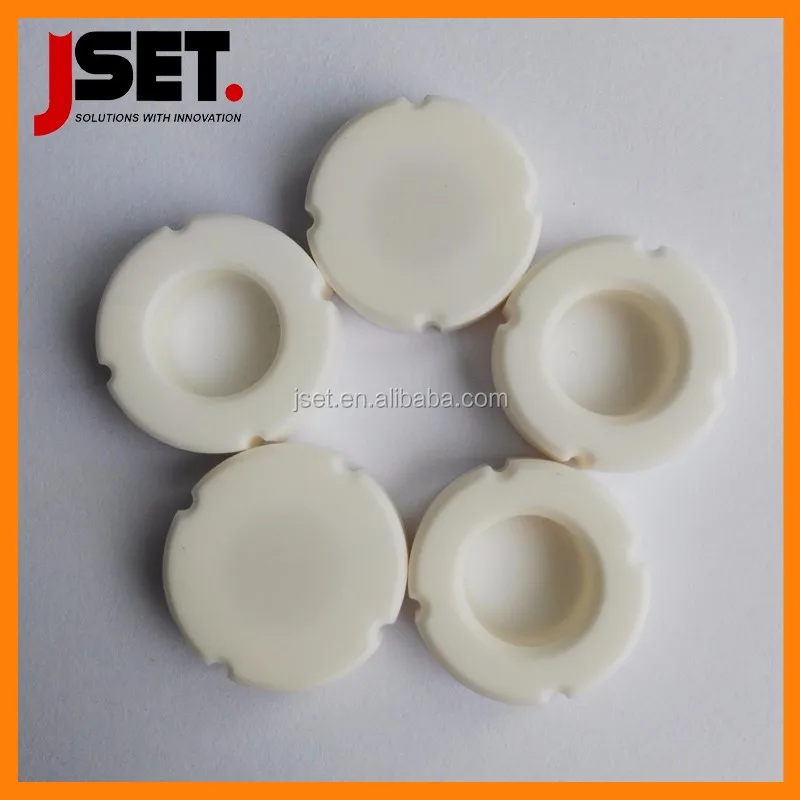

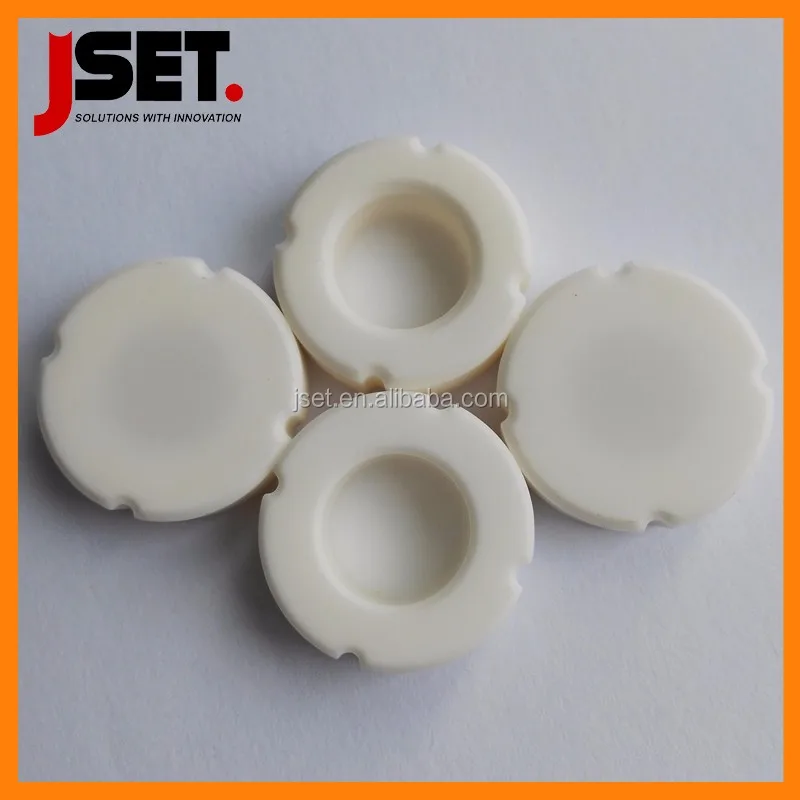

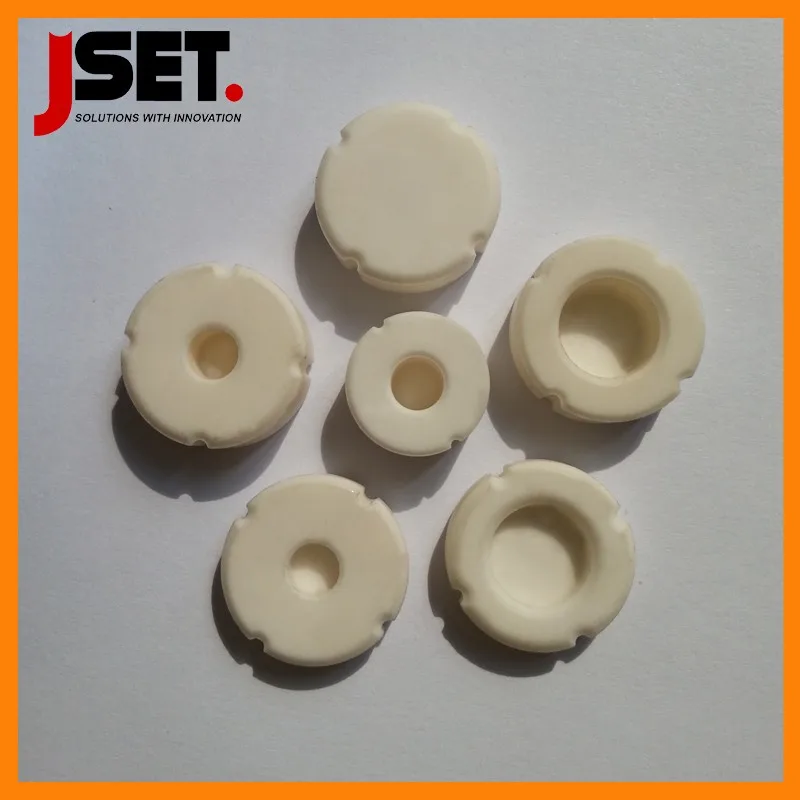

Products Show
Products Show
Our Service

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

Our Company

Factory

Our Factory

Workshop

Our Workshop

Professional advice

Our advantages

Team support


Packing & Delivery

Packing Details : Packing, ceramic parts customized, 50pcs/carton or as requested.
Delivery Details : about 30 days after order of ceramic parts / ceramic pressure sensor / tube / rob / disk / sheets / insulator / connector / bolt / nut / washer / crucible / component, etc.

1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A:  100% in advance.
