Si3N4 silicon nitride mig ceramic welding nozzle

FOB Reference Price:Get Latest Price
US $1-10 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
JSET
Model Number:
welding nozzle
Type:
Welding Torch
Welding Type:
Mig Torch
Welding Capacity:
long lifespan
Product name:
mig ceramic welding nozzle
color:
white, black
Density:
3.23 g/cm3
Flexual Strength:
720 MPa
Compressive Strength:
3,800 MPa
Elastic Modulus:
300 GPa
Coefficient of Line Thermal Expansion:
3x10-6K-1
Thermal Conductivity:
21 W/mK
Thermal Shock Resistance (Put in Water):
750 T°C
Max Working Temperature:
1,300°C
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week mig ceramic welding nozzle
Packaging & Delivery
Packaging Details
mig ceramic welding nozzle
Our standard cartons.
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(day) 30 To be negotiated

Si3N4 silicon nitride mig ceramic welding nozzle

IMG_20160524_151704






Si3N4 02.jpg

Product Description

Silicon nitride ceramic welding nozzle
The ceramic nozzle we produce is made of silicon nitride,which is widely used in auto welding industry.

The material of welding technology is usually used in extreme environment,should be chosen according to different application,to meet its high wear resistance, high durability, high efficient requirements.



MIG MAG nozzles 3

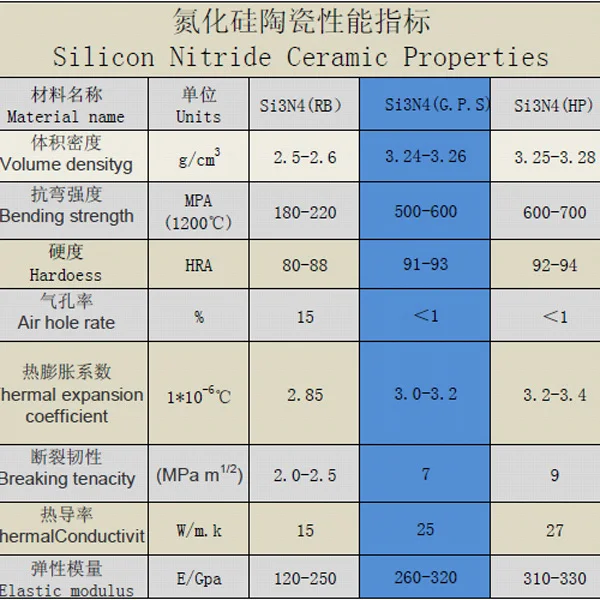

Silicon nitride ceramics (G.P.S) using in welding.

In welding technology, the silicon nitride materials has its outstanding advantage compared with other metal and non-metallic materials.

In welding technology, we will use sub-micron high-purity silicon raw material, isostatic pressing technology, sintering when the gas pressure is 100Pa. Silicon nitride has excellent flexural strength, electrical insulation property and high-pressure shock resistance and thermal shock resistance( when room temperature increases from 20 ℃ to 1400 ℃ instantaneously,hot and cold cycles repeat 35 times  the silicon nitride will not be burst).



1



The advantage of silicon nitride ceramic nozzle;

  • High hardness
  • High thermal shock resistance
  • Electrical insulating property
  • No cold welding
  • High temperature resistant
  • High toughness
  • High compressive strength

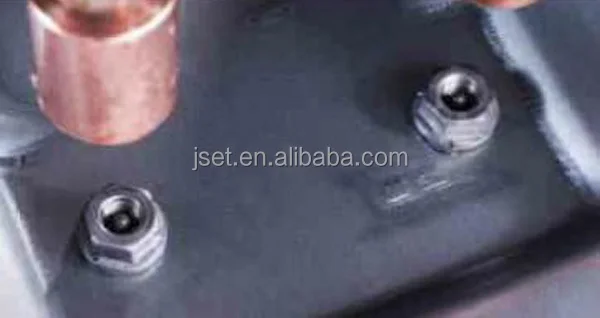

We also produce welding location pins,as below:

3



2



The high performance of silicon nitride is that under the high temperature of 800 ℃ , the welding plate and welding nut can accurate matching, it can not be achieved from other materials.  Although ceramic materials such as zirconia and alumina, and metal materials like KCF (ferrochrome) has been used for a very long time. However, silicon nitride as an alternative material, is has many outstanding advantage such as high hardness, high thermal shock resistance, electrical insulation and high temperature,etc.

Packaging & Shipping

 All products are packed by our JSET standard cartons such as attached below.Package depends on different quantity.





Our Services

JSET provide the following materials for machinable ceramics:



Alumina               Al2O3



Zirconia               ZrO2



Silicon nitride       Si3N4



Silicon carbide     SiC



Aluminum nitride  AlN



Cordierite



Mullite

In case of any this kind of products,welcome to send me your enquiry.We will get back to you in 24 hours.





Reasons to choose ceramic for your parts:

Ceramic parts are used for applications that require wear or corrosion resistance, high temperature capability, or ceramic insulators for electrical resistance.



1. High wear resistance

2. High corrosion resistance

3. Electrical resistance

4. Low thermal expansion

5. High tensile strength

6. Dielectric strength



Other services:

Supply standard ceramic bolts/screws and nuts

Supply silicon nitride welding nozzle for auto welding

Supply silicon nitride winding drum

Greener Manufacturing

Custom/Standard Shapes

Ceramic precision manufacturing

Fine machining

Ceramic machinable parts
