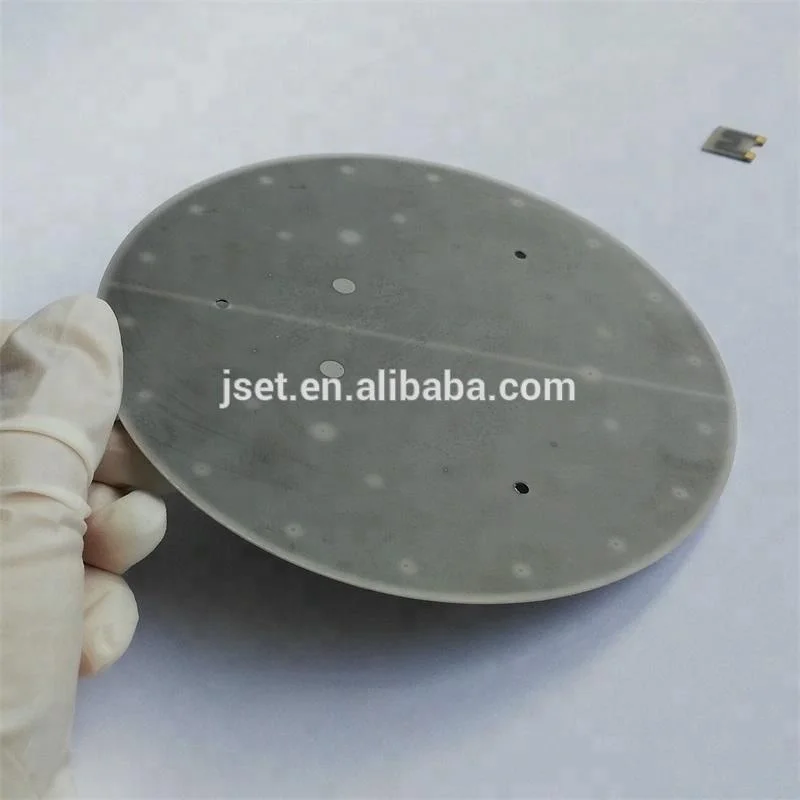

Aluminium nitride Good electrical insulation ALN Piece

FOB Reference Price:Get Latest Price
US $1-3 / Pieces | 10 Piece/Pieces Aluminium nitride Good electrical insulation ALN Piece (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Type:
Ceramic Parts
Application:
Structure Ceramic
Material:
Alumina Ceramic
Model Number:
Aluminum nitride
Brand Name:
JSET
Product name:
Aluminium nitride Good electrical insulation ALN Piece
Density of aluminum nitride:
3.3
Coefficient of elasticity:
350
Thermal conductivity:
140~220
Thermal expansion:
4
Specific heat:
730
Tensile strength:
400
Compressive strength:
2070
Flexual strength:
350
Melting point:
2400
Supply Ability
Supply Ability:
500 Piece/Pieces per Month Aluminium nitride Good electrical insulation ALN Piece
Packaging & Delivery
Packaging Details
Aluminium nitride Good electrical insulation ALN Piece
Our standard carton.
Port
Shanghai
Lead Time :
Shipped in 30 days after payment
Product Description

Aluminium nitride Good electrical insulation ALN Piece

Reasons to choose ceramic for your parts:
Ceramic parts are used for applications that require wear or corrosion resistance, high temperature capability, or ceramic insulators for electrical resistance.
1. High wear resistance
2. High corrosion resistance
3. Electrical resistance
4. Low thermal expansion
5. High tensile strength
6. Dielectric strength

Product Name
Aluminium nitride Good electrical insulation ALN Piece
Material
Aluminum nitride AlN
Color
grey
Standard
DIN GB ISO JIS BA ANSI
Used
industry machinery
Products Show
Product Description
DATASHEET of ALN
Main Characteristics
High Thermal Conductivity, Excellent Plasma Resistance
Main Applications
Heat Dissipating Parts, PlasmaResistance Parts
Alumina Nitride (AlN)
Characteristics
Item
AlN180
AlN200
AlN220
Unit
Mechanical Characteristics
Colour
Gray
Gray
Beige

Density
3.3
3.3
3.28
g/cm3
Flexural Strength
≥350
≥350
≥350
MPa
Compressive Strength
2500
2500
-
MPa
Elastic Modulus
320
320
320
GPa
Vickers Hardness (Load 500g)
10
9.5
9
HV0.5
Thermal Characteristics
Coefficient of Line Thermal Expansion
4.8
4.6
4.5
10-6K-1
Thermal Conductivity(20℃)
180
200
220
W/mK
Electrical Characteristics
Volume Resistance at 20°C
>1014
>1014
>1013
Ωcm
Dielectric Strength
≥15
≥15
≥15
KV/mm
Dielectric Constant (1MHz)
9
8.8
8.6
εr
Loss Tangent
5
5
3
10-4
Products Show
Our Service

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

Our Company

Factory

Our Factory

Workshop

Our Workshop

Packing & Delivery

Packing Details  : Packing, solid bicycle saddle, 50pcs/carton

Delivery Details : 3-30 days after order of Solid bicycle tire tubes

1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment 100% in advance.
If you have another question, pls feel free to contact us as below:

Skype: eva_wy8610
